Problem

You want to use colors in a graph with ggplot2.

Solution

The default colors in ggplot2 can be difficult to distinguish from one another because they have equal luminance. They are also not friendly for colorblind viewers.

A good general-purpose solution is to just use the colorblind-friendly palette below.

Sample data

These two data sets will be used to generate the graphs below.

# Two variables
df <- read.table(header=TRUE, text='
 cond yval
    A 2
    B 2.5
    C 1.6
')

# Three variables
df2 <- read.table(header=TRUE, text='
 cond1 cond2 yval
    A      I 2
    A      J 2.5
    A      K 1.6
    B      I 2.2
    B      J 2.4
    B      K 1.2
    C      I 1.7
    C      J 2.3
    C      K 1.9
')

Simple color assignment

The colors of lines and points can be set directly using colour="red", replacing “red” with a color name. The colors of filled objects, like bars, can be set using fill="red".

If you want to use anything other than very basic colors, it may be easier to use hexadecimal codes for colors, like "#FF6699". (See the hexadecimal color chart below.)

library(ggplot2)
# Default: dark bars
ggplot(df, aes(x=cond, y=yval)) + geom_bar(stat="identity")
# Bars with red outlines
ggplot(df, aes(x=cond, y=yval)) + geom_bar(stat="identity", colour="#FF9999")
# Red fill, black outlines
ggplot(df, aes(x=cond, y=yval)) + geom_bar(stat="identity", fill="#FF9999", colour="black")


# Standard black lines and points
ggplot(df, aes(x=cond, y=yval)) +
    geom_line(aes(group=1)) +     # Group all points; otherwise no line will show
    geom_point(size=3)
# Dark blue lines, red dots
ggplot(df, aes(x=cond, y=yval)) +
    geom_line(aes(group=1), colour="#000099") +  # Blue lines
    geom_point(size=3, colour="#CC0000")         # Red dots

plot of chunk unnamed-chunk-3plot of chunk unnamed-chunk-3plot of chunk unnamed-chunk-3plot of chunk unnamed-chunk-3plot of chunk unnamed-chunk-3

Mapping variable values to colors

Instead of changing colors globally, you can map variables to colors – in other words, make the color conditional on a variable, by putting it inside an aes() statement.

# Bars: x and fill both depend on cond2
ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity")

# Bars with other dataset; fill depends on cond2
ggplot(df2, aes(x=cond1, y=yval)) +
    geom_bar(aes(fill=cond2),   # fill depends on cond2
             stat="identity",
             colour="black",    # Black outline for all
             position=position_dodge()) # Put bars side-by-side instead of stacked

# Lines and points; colour depends on cond2
ggplot(df2, aes(x=cond1, y=yval)) +
    geom_line(aes(colour=cond2, group=cond2)) + # colour, group both depend on cond2
    geom_point(aes(colour=cond2),               # colour depends on cond2
               size=3)                          # larger points, different shape
## Equivalent to above; but move "colour=cond2" into the global aes() mapping
# ggplot(df2, aes(x=cond1, y=yval, colour=cond2)) +
#    geom_line(aes(group=cond2)) +
#    geom_point(size=3)

plot of chunk unnamed-chunk-4plot of chunk unnamed-chunk-4plot of chunk unnamed-chunk-4

A colorblind-friendly palette

These are color-blind-friendly palettes, one with gray, and one with black.

plot of chunk unnamed-chunk-5plot of chunk unnamed-chunk-5

To use with ggplot2, it is possible to store the palette in a variable, then use it later.

# The palette with grey:
cbPalette <- c("#999999", "#E69F00", "#56B4E9", "#009E73", "#F0E442", "#0072B2", "#D55E00", "#CC79A7")

# The palette with black:
cbbPalette <- c("#000000", "#E69F00", "#56B4E9", "#009E73", "#F0E442", "#0072B2", "#D55E00", "#CC79A7")

# To use for fills, add
  scale_fill_manual(values=cbPalette)

# To use for line and point colors, add
  scale_colour_manual(values=cbPalette)

This palette is from http://jfly.iam.u-tokyo.ac.jp/color/:

Colorblind palette

Color selection

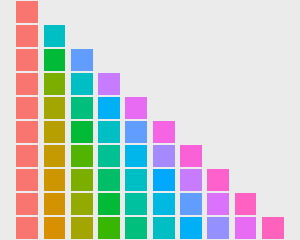

By default, the colors for discrete scales are evenly spaced around a HSL color circle. For example, if there are two colors, then they will be selected from opposite points on the circle; if there are three colors, they will be 120° apart on the color circle; and so on. The colors used for different numbers of levels are shown here:

plot of chunk unnamed-chunk-7

The default color selection uses scale_fill_hue() and scale_colour_hue(). For example, adding those commands is redundant in these cases:

# These two are equivalent; by default scale_fill_hue() is used
ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity")
# ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity") + scale_fill_hue()

# These two are equivalent; by default scale_colour_hue() is used
ggplot(df, aes(x=cond, y=yval, colour=cond)) + geom_point(size=2)
# ggplot(df, aes(x=cond, y=yval, colour=cond)) + geom_point(size=2) + scale_colour_hue()

plot of chunk unnamed-chunk-8plot of chunk unnamed-chunk-8

Setting luminance and saturation (chromaticity)

Although scale_fill_hue() and scale_colour_hue() were redundant above, they can be used when you want to make changes from the default, like changing the luminance or chromaticity.

# Use luminance=45, instead of default 65
ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity") +
    scale_fill_hue(l=40)

# Reduce saturation (chromaticity) from 100 to 50, and increase luminance
ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity") +
    scale_fill_hue(c=45, l=80)

# Note: use scale_colour_hue() for lines and points

plot of chunk unnamed-chunk-9plot of chunk unnamed-chunk-9

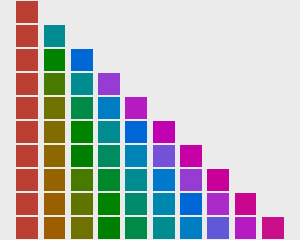

This is a chart of colors with luminance=45:

plot of chunk unnamed-chunk-10

Palettes: Color Brewer

You can also use other color scales, such as ones taken from the RColorBrewer package. See the chart of RColorBrewer palettes below. See the scale section here for more information.

ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity") +
    scale_fill_brewer()

ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity") +
    scale_fill_brewer(palette="Set1")

ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity") +
    scale_fill_brewer(palette="Spectral")

# Note: use scale_colour_brewer() for lines and points

plot of chunk unnamed-chunk-11plot of chunk unnamed-chunk-11plot of chunk unnamed-chunk-11

Palettes: manually-defined

Finally, you can define your own set of colors with scale_fill_manual(). See the hexadecimal code chart below for help choosing specific colors.

ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity") +
    scale_fill_manual(values=c("red", "blue", "green"))

ggplot(df, aes(x=cond, y=yval, fill=cond)) + geom_bar(stat="identity") +
    scale_fill_manual(values=c("#CC6666", "#9999CC", "#66CC99"))

# Note: use scale_colour_manual() for lines and points

plot of chunk unnamed-chunk-12plot of chunk unnamed-chunk-12

Continuous colors

[Not complete]

See the scale section here for more information.

# Generate some data
set.seed(133)
df <- data.frame(xval=rnorm(50), yval=rnorm(50))

# Make color depend on yval
ggplot(df, aes(x=xval, y=yval, colour=yval)) + geom_point()

# Use a different gradient
ggplot(df, aes(x=xval, y=yval, colour=yval)) + geom_point() +
    scale_colour_gradientn(colours=rainbow(4))

plot of chunk unnamed-chunk-13plot of chunk unnamed-chunk-13

Color charts

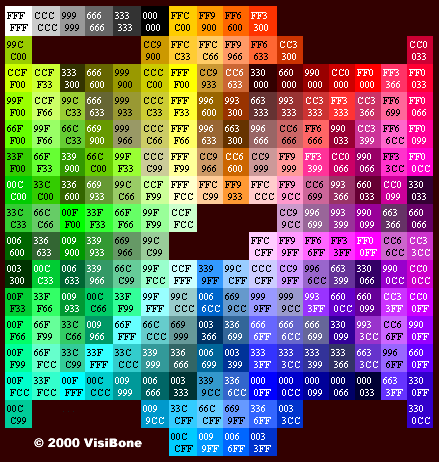

Hexadecimal color code chart

Colors can specified as a hexadecimal RGB triplet, such as "#0066CC". The first two digits are the level of red, the next two green, and the last two blue. The value for each ranges from 00 to FF in hexadecimal (base-16) notation, which is equivalent to 0 and 255 in base-10. For example, in the table below, “#FFFFFF” is white and “#990000” is a deep red.

(Color chart is from http://www.visibone.com)

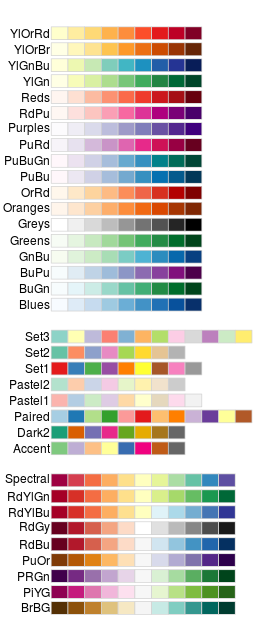

RColorBrewer palette chart

plot of chunk unnamed-chunk-14
